RGB'S - SUBARU 6MT TY75 - T3 VANAGON 2WD

COMING SOON!

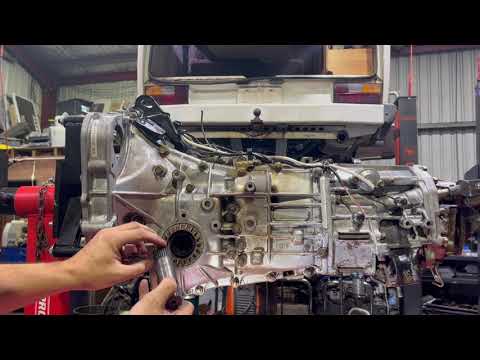

To see the RGB's in action, please see the video which is the last image in this listing.

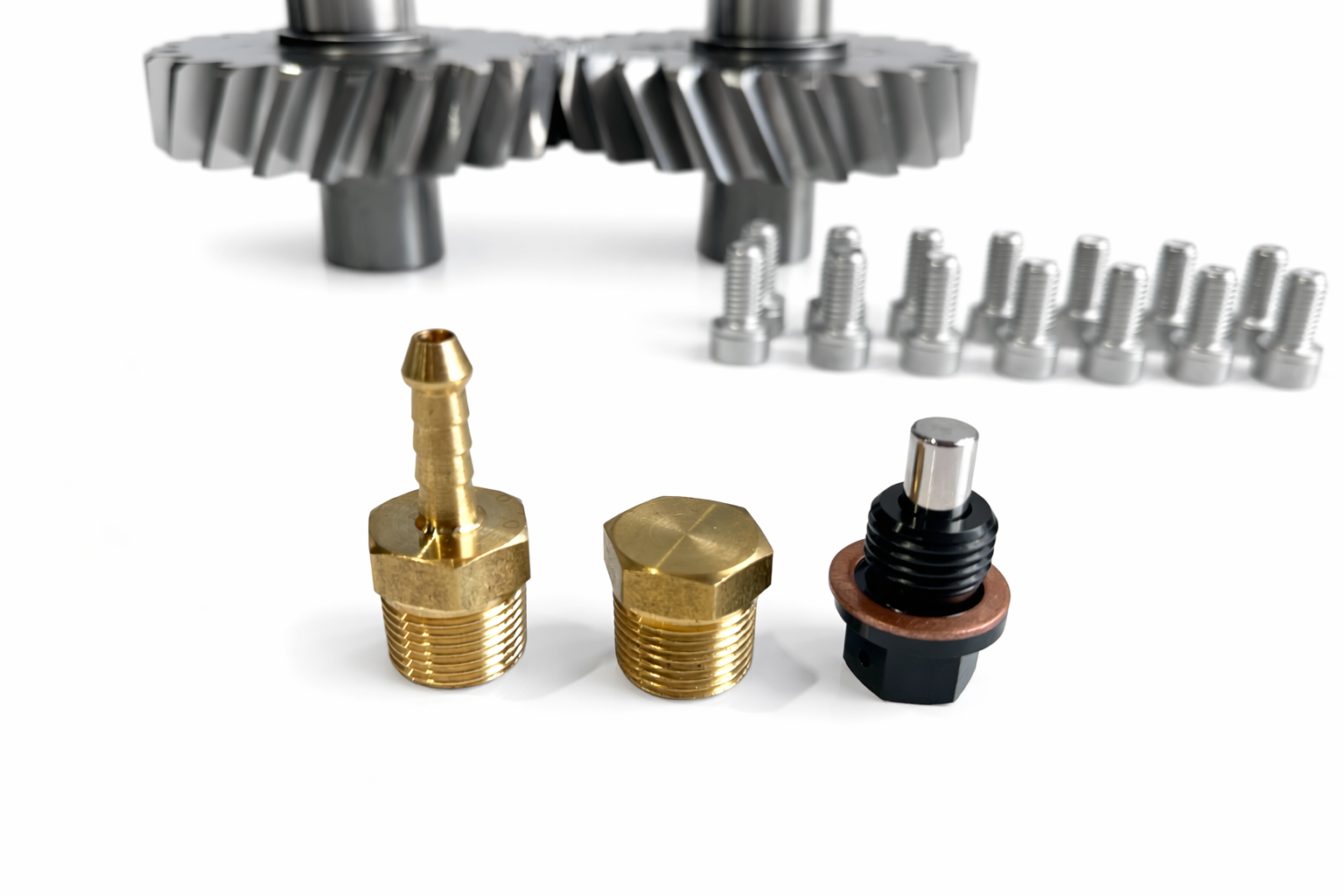

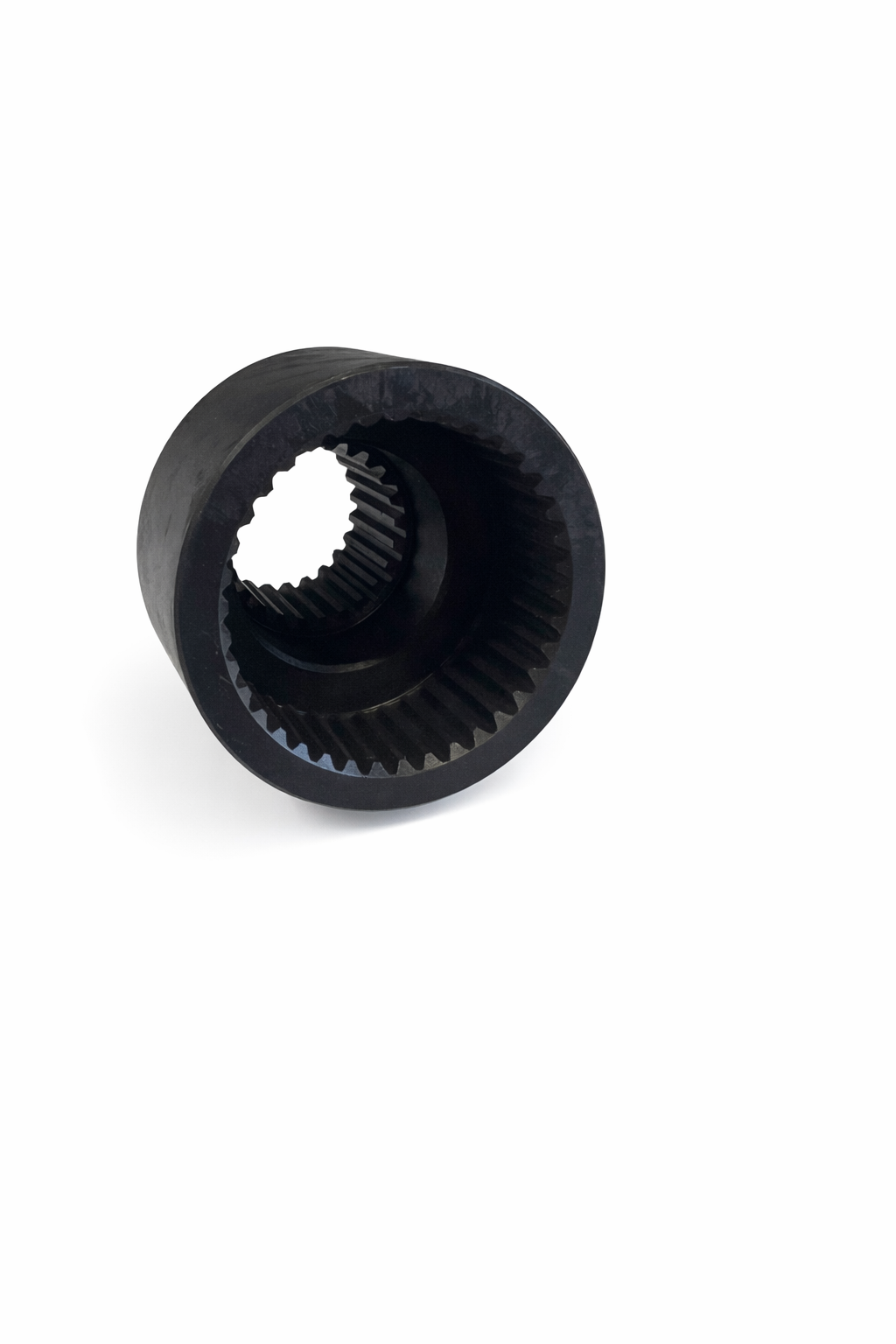

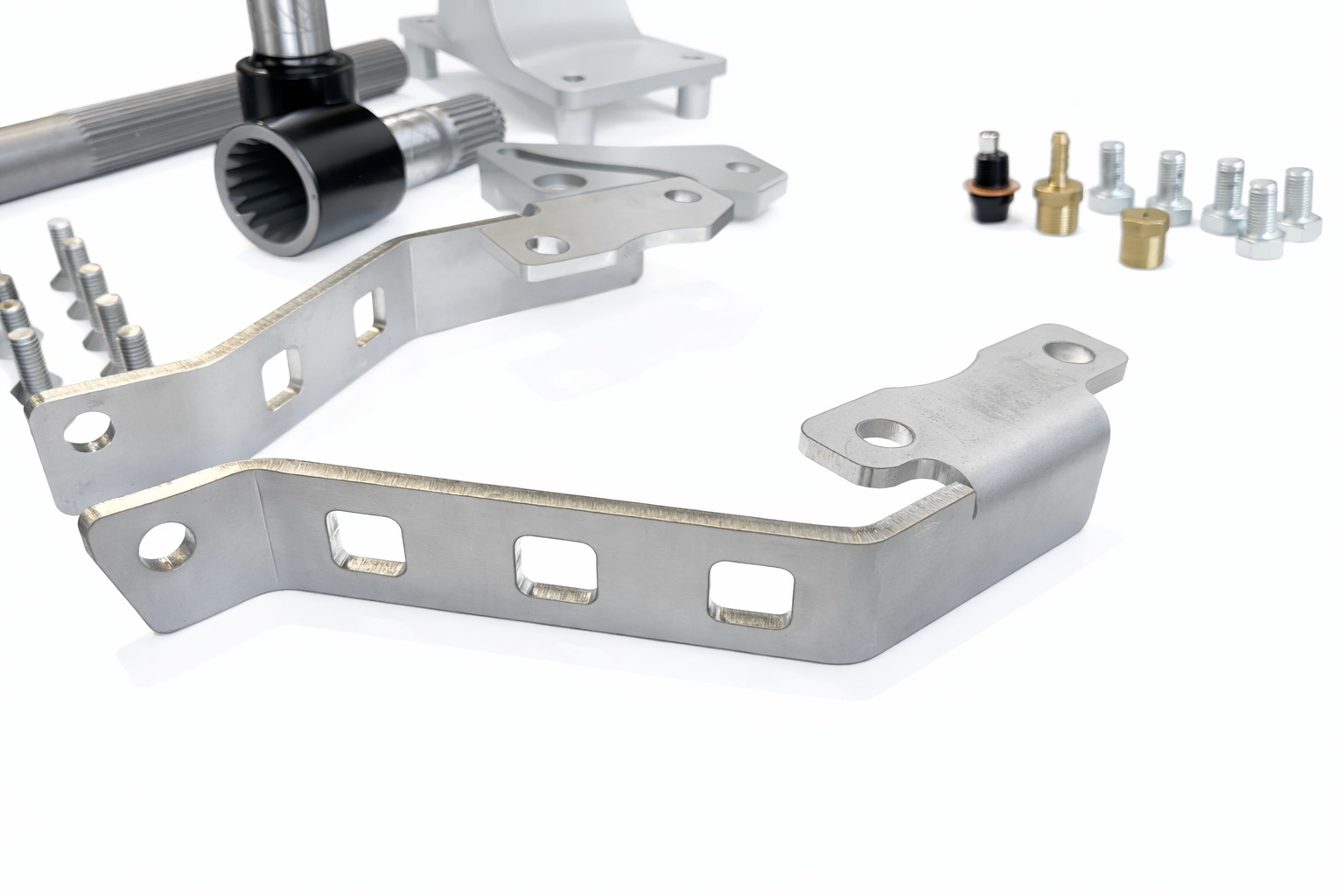

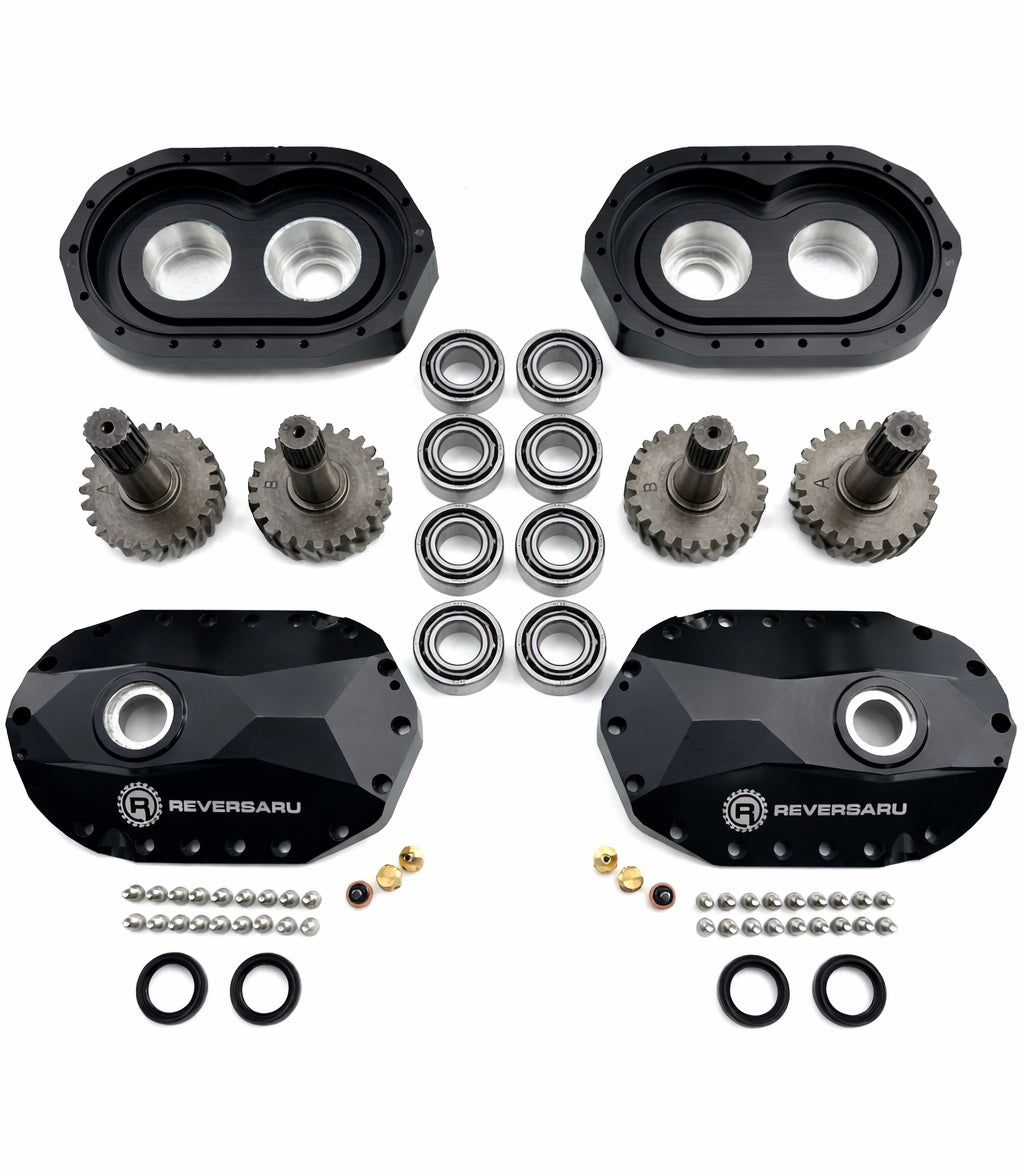

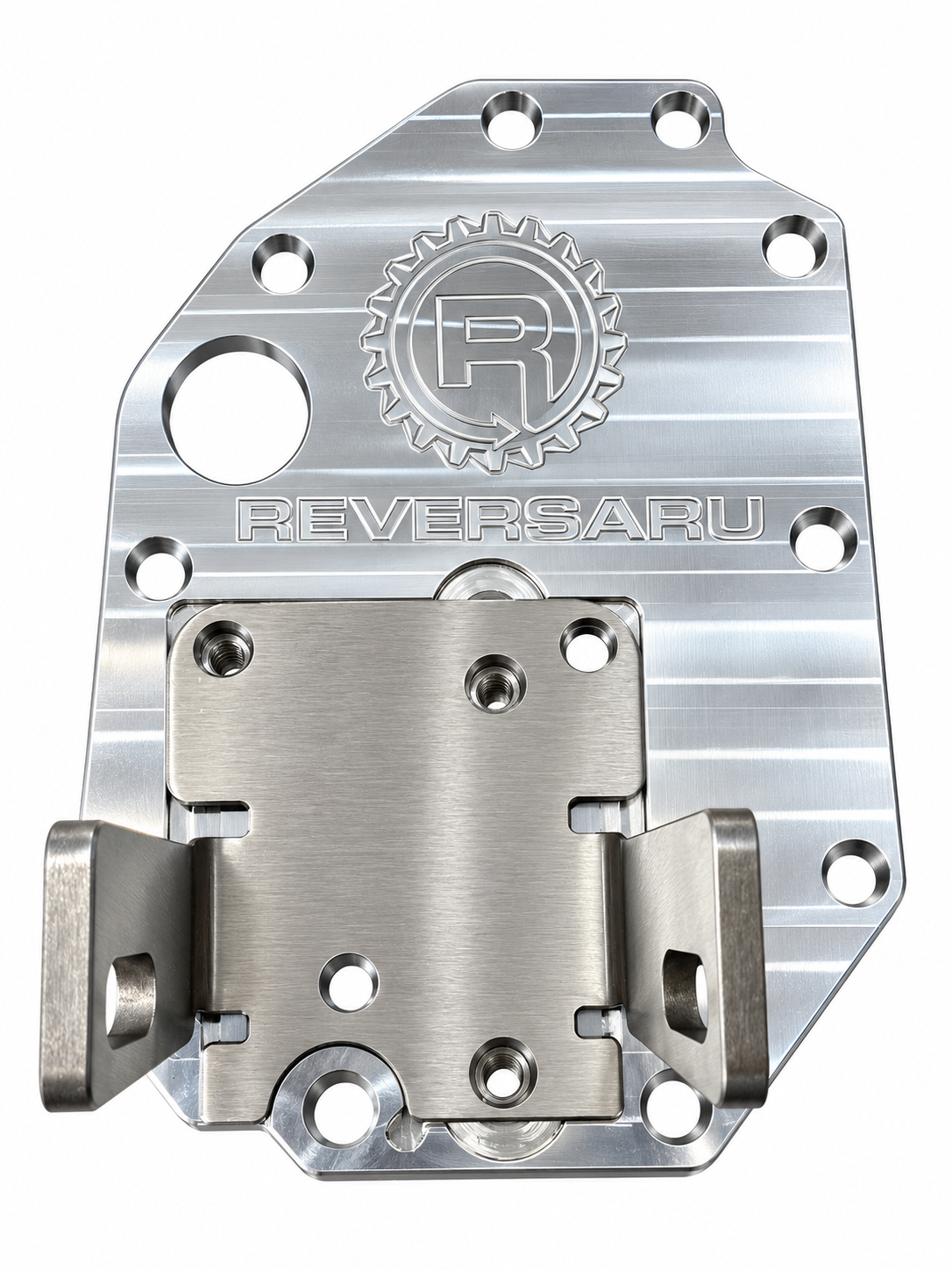

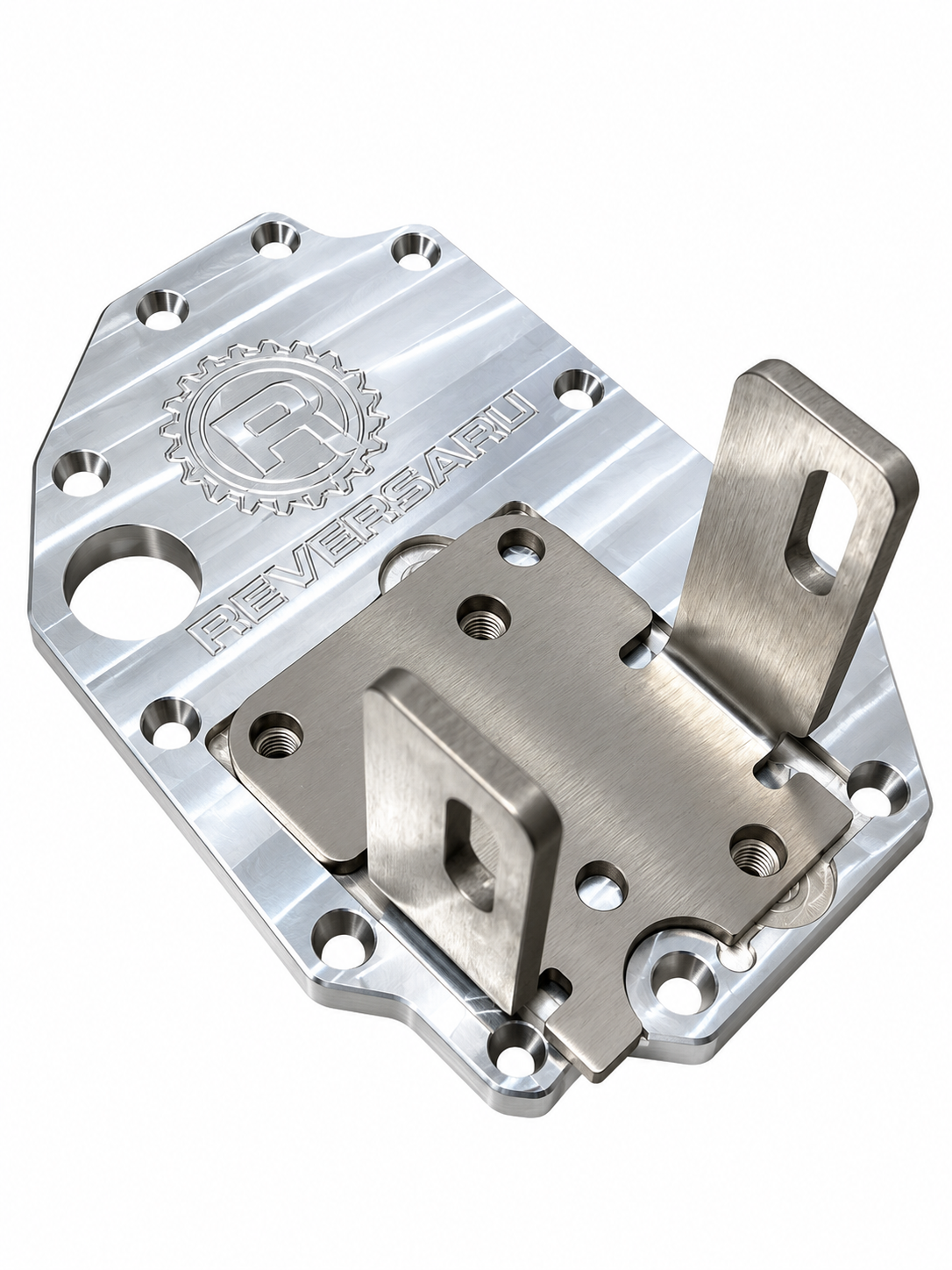

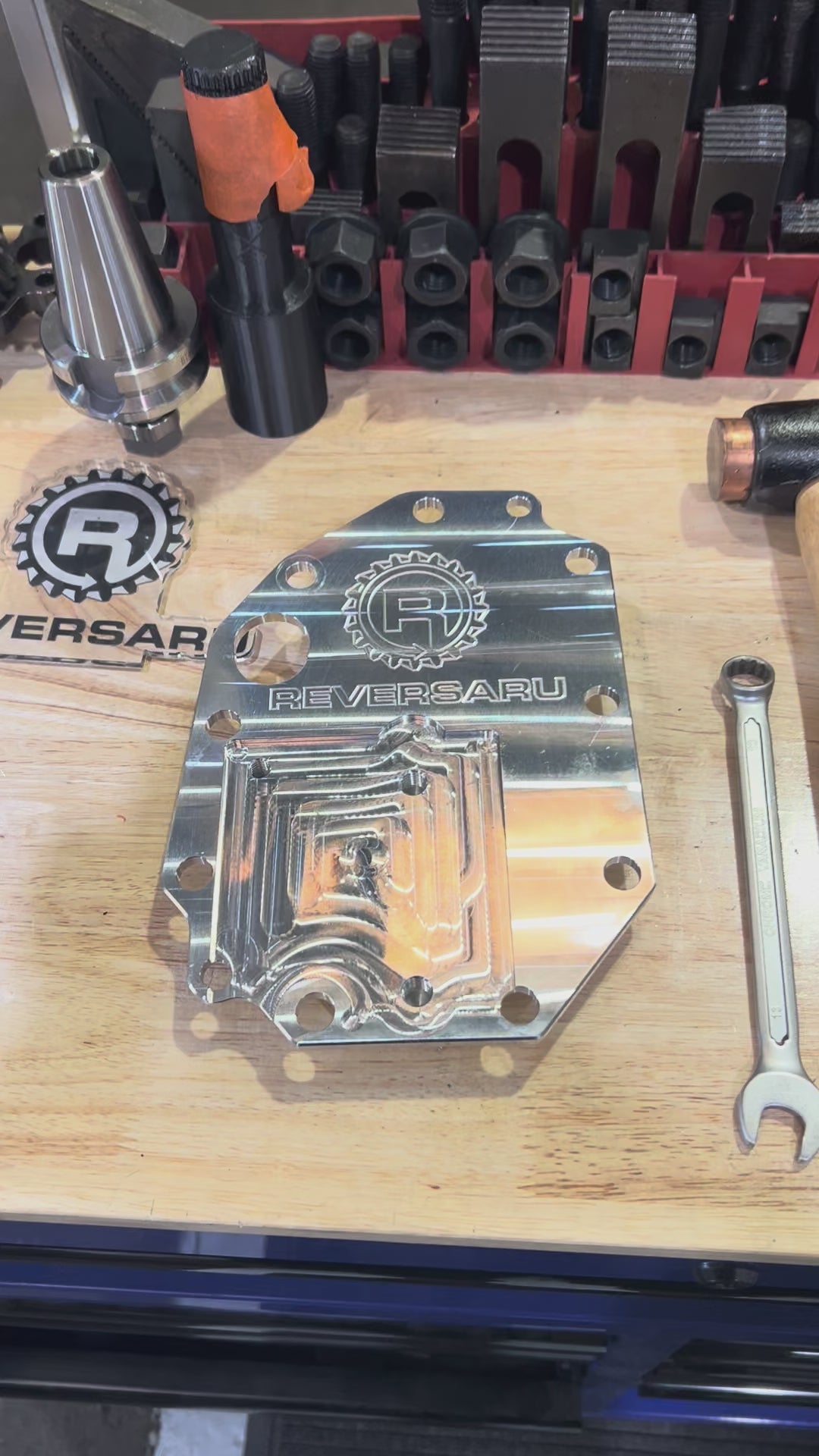

This kit converts the Subaru TY75 6MT / 6 speed manual transmission from AWD to 2WD and reverses the drive. The kit also comes with brackets to install the transmission into a T3 Vanagon.

In order to help identify your 6 speed transmission please see photos below showing some of the many differences. ***This particular listing is for the TY75 6 Speed.

THE PHOTOS BELOW SHOW THE DIFFERENCES BETWEEN THE STI TY85 6 SPEED AND THE TY75 6 SPEED.

FURTHER GEARBOX INFORMATION:

"T" = transmission code
"Y" = that it is a manual awd gearbox
"85" = the transmission classification...in the case of manual gearboxes this number indicates the gear shaft spacing in millimeters. 6-speed transmissions use an 85mm shaft spacing while the current generation of 5-speed transmissions use a 75mm shaft spacing.

"6" = some reference to the transmission case. "6" is used for 6-speeds, "4" is used for 8-bolt 5-speeds, "2" for 4-bolt Impreza 5-speeds, "5" for Forester 8-bolt 5-speeds, "3" for 4-bolt Forester 5-speeds, and "7" for some Legacy turbo 8-bolt 5-speeds. (my experience this coding of Impreza, Forester, Legacy as given here is not always the case. . .the important thing here is 4-bolt vs. 8- bolt and the higher the number, the more recent the transmission)

"W" = transmission specification. "W" is 6-speed, "V" is 5-speed, "Z" = AT with MPT, "Y" = AT with VTD, etc. “X”= Dual range

"B1AA" = indicates various details about the equipment such as center diff. type, front LSD, etc. and also about minor production changes.
