RGB'S - SUBARU 5MT / 5 SPEED MANUAL - T2 BAY WINDOW 2WD

COMING SOON!

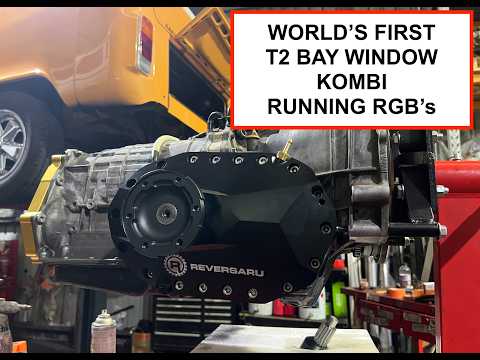

To see the RGB's in action (on a 4 speed auto in a T2 Bay Window), please see the video which is the last image in this listing.

This kit converts the Subaru 5MT / 5 speed manual transmission from AWD to 2WD and reverses the drive. The kit also comes with brackets to install the transmission into a T2 Bay Window.

NOTES:

• The best transmission to obtain is the FEMALE type transmission with male CV joints. Please see video in this listing for more information.

FURTHER GEARBOX INFORMATION:

"T" = transmission code
"Y" = that it is a manual awd gearbox
"85" = the transmission classification...in the case of manual gearboxes this number indicates the gear shaft spacing in millimeters. 6-speed transmissions use an 85mm shaft spacing while the current generation of 5-speed transmissions use a 75mm shaft spacing.

"6" = some reference to the transmission case. "6" is used for 6-speeds, "4" is used for 8-bolt 5-speeds, "2" for 4-bolt Impreza 5-speeds, "5" for Forester 8-bolt 5-speeds, "3" for 4-bolt Forester 5-speeds, and "7" for some Legacy turbo 8-bolt 5-speeds. (my experience this coding of Impreza, Forester, Legacy as given here is not always the case. . .the important thing here is 4-bolt vs. 8- bolt and the higher the number, the more recent the transmission)

"W" = transmission specification. "W" is 6-speed, "V" is 5-speed, "Z" = AT with MPT, "Y" = AT with VTD, etc. “X”= Dual range

"B1AA" = indicates various details about the equipment such as center diff. type, front LSD, etc. and also about minor production changes.
