4EAT 2WD MID ENGINE KIT (Non reversed)

Reversaru

4EAT 2WD MID ENGINE KIT (Non reversed)

Sale price$1,650.00

*$$$ Currency note: Regardless of where you are located, all pricing is shown in USD$ and will be charged in $USD at the 'then current' exchange rate to your local currency at the time of purchase.

AUTO 4EAT 2WD MID ENGINE KIT:

This kit does NOT reverse the drive of the 4EAT transmission.

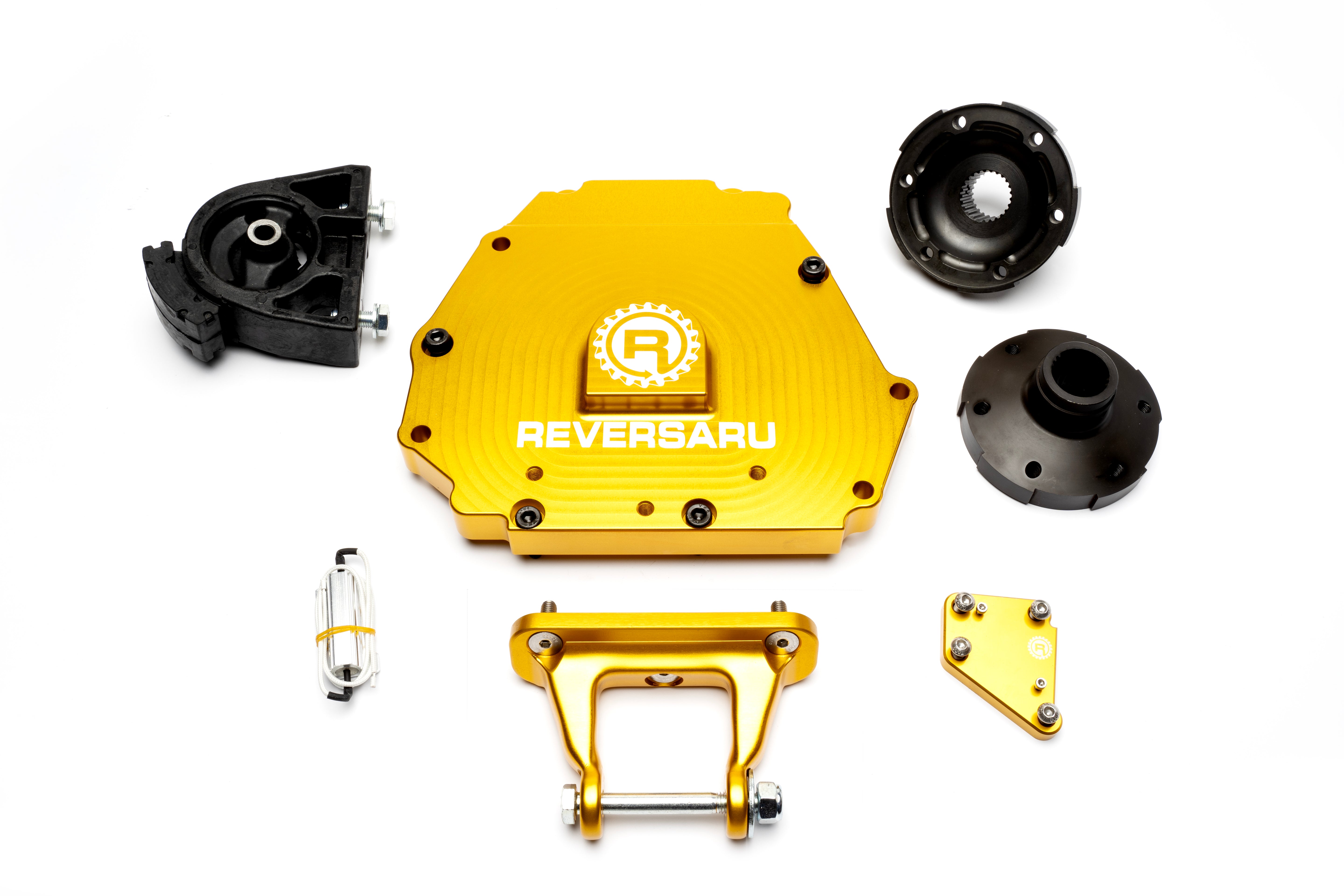

The kit includes:

1x Reversaru end cover plate:
The end cover plate is used in place of the standard Subaru rear housing which is removed and discarded when converting the transmission to 2WD.

1x Lower transmission mount bracket:
The lower transmission mount bracket that is included in the kit is the one pictured in the listing.

1x Transmission mount:
The Transmission mount that is included in the kit is the one pictured in the listing.


2x 100mm CV adapter flanges:
The CV adapter flanges allow the standard VW CV’s to attach to the Subaru 4EAT transmission. NOTE: If you have the new style Male CV joints, you will need a set of Stub axles. The stub axles are not required if you have the older Female style Cv’s. Stub axles can be purchased from our online store.

1x Resistor:
Due to the fact the AWD solenoid is removed, the resistor tricks the ECU by regulating the current to the ‘expected’ current so that the ECU doesn’t realise that the AWD solenoid has been disconnected and removed.

1x AWD clutch solenoid cover plate:
The cover plate covers the AWD clutch solenoid passages. Note: This cover plate is not required on TZ1B transmissions.

Bolts:
All bolts required to install the kit.
