CABLE SHIFT KIT - SUBARU TY75 6-SPEED (USING RGB's) TO SUIT T25 - T3 VANAGON

COMING SOON!

This cable shift kit suits the TY75 6 speed (split case) with RGB's attached to reverse the drive.

Please see photos below in this blurb to help identify your 6 Speed transmission so you purchase the correct kit.

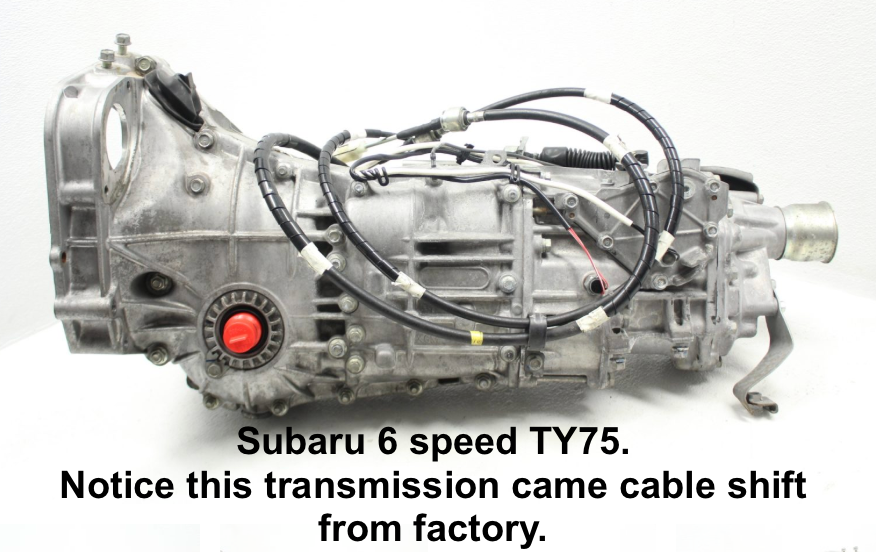

The TY75 6 speed, Split Case model looks almost identical to the 5MT but came with cable shift from factory.

The REVERSARU cable shift kit bolts directly to the TY75 6 speed and connects to the factory cable levers.

Our shift kit also includes an electronic reverse gear lockout that is automatically activated.

THE PHOTOS BELOW SHOW THE DIFFERENCES BETWEEN THE STI TY85 6 SPEED AND THE TY75 6 SPEED.

FURTHER GEARBOX INFORMATION:

"T" = transmission code
"Y" = that it is a manual awd gearbox
"85" = the transmission classification...in the case of manual gearboxes this number indicates the gear shaft spacing in millimeters. 6-speed transmissions use an 85mm shaft spacing while the current generation of 5-speed transmissions use a 75mm shaft spacing.

"6" = some reference to the transmission case. "6" is used for 6-speeds, "4" is used for 8-bolt 5-speeds, "2" for 4-bolt Impreza 5-speeds, "5" for Forester 8-bolt 5-speeds, "3" for 4-bolt Forester 5-speeds, and "7" for some Legacy turbo 8-bolt 5-speeds. (my experience this coding of Impreza, Forester, Legacy as given here is not always the case. . .the important thing here is 4-bolt vs. 8- bolt and the higher the number, the more recent the transmission)

"W" = transmission specification. "W" is 6-speed, "V" is 5-speed, "Z" = AT with MPT, "Y" = AT with VTD, etc. “X”= Dual range
